The Hidden Cost Driver in Your CAD Model: How Structural Design Directly Impacts Machining Bills

As mechanical engineers, we live in a world of FEA, tolerance stacks, and material properties. We design for strength, weight, and function. But how often do we design with the end-mill in mind?

The reality is that the decisions made in the CAD stage are the single biggest factor in determining CNC machining costs. A subtle design choice can be the difference between a cost-effective part and a budget-busting one.

Here’s a breakdown of the key structural design elements that directly hit the bottom line:

1. The Wall Thickness Trap
Designing ultra-thin walls might save grams, but it adds dollars and risk. Thin walls deflect during machining, leading to vibration, poor surface finish, and potential scrap. They often require slower feeds/speeds, special tooling, and multiple fine-finishing passes. Design Tip: Maintain reasonable wall thicknesses. For metals, aim for a minimum of 0.8-1mm; for plastics, 1.5mm+.

2. The Criticality of Internal Radii
This is a classic, yet frequently overlooked, cost driver. A sharp internal corner is impossible to create with a round cutting tool. The size of your specified radius directly determines the tool size.

• A small radius requires a small end-mill.

• A small end-mill requires more passes, less material removal per pass, and a higher risk of tool breakage (and more frequent tool changes).

Design Tip: Specify the largest possible internal radius (or fillet). If you need a sharp corner for assembly, ask your machinist for the "standard corner radius" for a given pocket depth and use it everywhere.

3. The High Price of High Aspect Ratio
Deep pockets with small radii create high aspect-ratio features. Machining these is a nightmare. Long, slender tools are required, which are prone to chatter, deflection, and breakage. This forces a dramatic reduction in cutting speed and an increase in machining time. Design Tip: If a deep feature is necessary, consider designing it as a two-part assembly or incorporating draft (taper) on the walls to allow for a more robust tool.

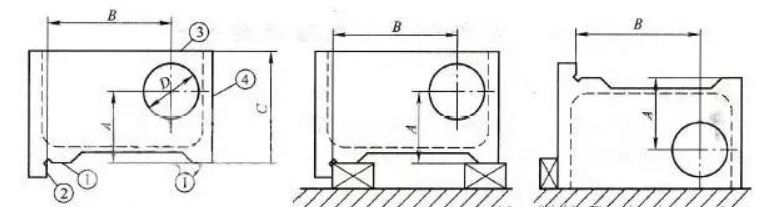

4. The "Setups" Multiplier
Every time a part must be re-fixtured in the machine, cost increases. A complex part requiring 5-axis machining may be more efficient than a simple part that needs 3 separate setups on a 3-axis machine.

• Design for Accessibility: Can all critical features be machined from one or two sides?

• Avoid "Hidden" Geometry: Features on the backside of a boss or inside a deep cavity often necessitate a second setup.

The Bottom Line for Engineers:

You are the first step in the manufacturing process. By designing with manufacturability (DFM) as a core principle, you don't just make the machinist's job easier—you directly contribute to a leaner, more efficient, and more profitable project.

Before you release your next design, ask yourself:

• "Can I increase this radius?"

• "Is this wall thick enough to be machined robustly?"

• "How many setups will this part require?"

A small change in your model can lead to a massive change in the quote.
